3×16+35mm 0.6/1kV Fire Resistant Copper Cable, Steel Wire Armored, LSHF Sheath | Al Fanar

Description

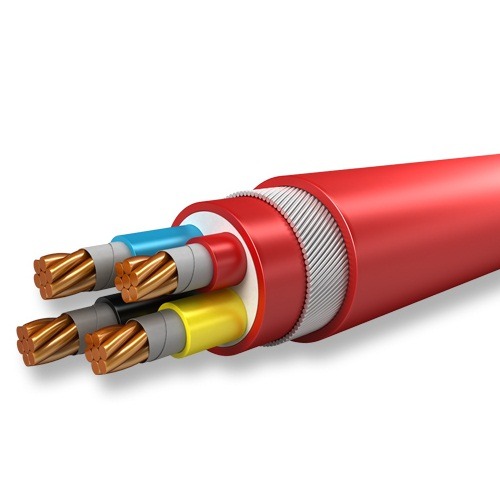

3×16+35mm 0.6/1kV fire resistant copper cable by Al Fanar features 3.5 core stranded copper conductors with red, yellow, blue, and black phase colors. It is steel wire armored (SWA) and protected by an LSHF sheath, ideal for safe power distribution in demanding construction environments.

Product Description

The 3×16+35mm 0.6/1kV fire resistant copper cable, manufactured by Al Fanar, is a steel wire armored (SWA) power cable designed for high mechanical protection and fire resistance. It features 3.5 core stranded copper conductors insulated with XLPE for enhanced durability and thermal stability up to 90°C. The cable’s LSHF (Low Smoke Halogen Free) sheath minimizes smoke and toxic emissions during fire, making it ideal for construction and industrial power distribution across Saudi Arabia.

Conductor: 3.5 core stranded copper
Size: 3×16+35 mm²
Voltage Rating: 0.6/1 kV
Armour: Single layer galvanized steel wire (SWA)
Insulation: XLPE (cross-linked polyethylene)
Sheath: LSHF (Low Smoke Halogen Free)
Phase core colors: Red, Yellow, Blue, Black
Temperature rating: Up to 90°C
Fire resistant and mechanically robust
Suitable for harsh environments including moisture, corrosion, and chemicals
