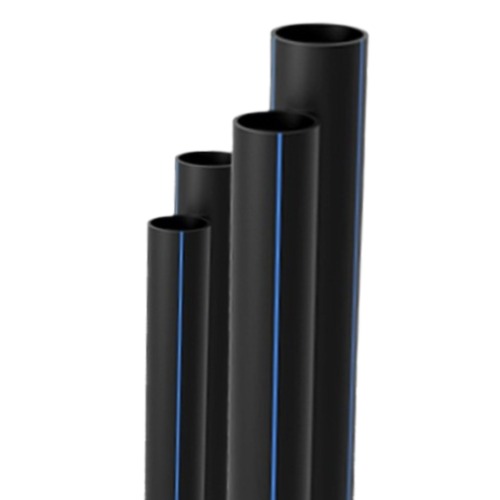

HDPE Coil Pipe Nominal Pressure 8 Bar PE 80 OD 50 mm SDR 17 Black | Al mona for innovative pipe solutions

Description

HDPE Coil Pipe by Al mona for innovative pipe solutions offers durable and corrosion-resistant water piping with a nominal pressure of 8 bar, PE 80 material grade, and 50 mm outer diameter. Ideal for efficient water transport and infrastructure projects.

Product Description

HDPE Coil Pipe manufactured by Al mona for innovative pipe solutions is designed for reliable water transportation networks. Made from high-density polyethylene (PE 80), this pipe provides excellent strength, durability, and resistance to corrosion and rust. It withstands high pressure of 8 bar and maintains performance under challenging environmental conditions, making it a preferred choice in construction materials and building supplies across Saudi Arabia.

Outside diameter: 50 mm
Standard Dimension Ratio (SDR): 17
Material grade: PE 80
Nominal pressure: 8 bar
Wall thickness: 3 mm
Minimum Required Strength (MRS): 8 MPa
Design stress (σs): 6.4 MPa
Design safety factor: C = 1.25
Color: Black
Available in coils (100 meters, 200 meters)
