HDPE Pipe Pressure 6.3 Bar PE 100 Size OD 450 mm Thickness 17.2 mm Black | Al Wasail

HDPE Pipe Pressure 6.3 Bar PE 100 Size OD 450 mm Thickness 17.2 mm Black | Al Wasail - Image 1

HDPE Pipe Pressure 6.3 Bar PE 100 Size OD 450 mm Thickness 17.2 mm Black | Al Wasail

🔗 Related Content

Galvanised C Pipe Clamp Size 4 inch... HDPE Pipes GRP Pipes CPVC Pipes SPS HDPE Pipe PE 100 Pressure 6 Bar... HDPE Pipe Pressure 6.3 Bar PE 100 S... HDPE Pipe Pressure 6.3 Bar PE 100 S... HDPE Plastic Pipe Nominal Pressure...

In Stock

HDPE Pipe Pressure 6.3 Bar PE 100 Size OD 450 mm Thickness 17.2 mm Black | Al Wasail

Description

HDPE Pipe by Al Wasail features PE 100 material grade, 6.3 bar pressure rating, and 450 mm outside diameter. Its black color and robust construction make it ideal for high-pressure water supply applications.

Product Description

HDPE Pipe by Al Wasail is manufactured from high-quality polyethylene PE 100, known for its excellent resistance to harsh environmental conditions and chemical exposure without corrosion or leakage. This pipe offers high pressure tolerance of 6.3 bar, black color for UV resistance, and high elasticity that prevents damage from soil movement. It is lightweight, easy to install, and widely used in water supply and other construction applications across Saudi Arabia.

Outside diameter: 450 mm
Inside diameter: 415.6 mm
Thickness: 17.2 mm
Weight: 23.500 kg/m
Standard dimension ratio (SDR): 26
Pipe series (S): 12.5
Material grade: PE 100
Pressure rating: 6.3 bar
Color: Black

Overview

Category HDPE Pipes

Frequently Bought Together

HDPE Pipes PE 100 Pressure 12.5 Bar Outside Diameter 315 mm Thickness 23.2 mm Blue | NEPROPLAST

SAR 0

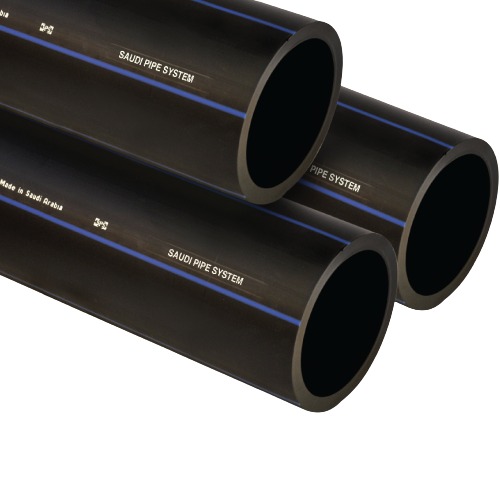

SPS HDPE Pipes PE 80 Pressure 12.5 Bar Outside Diameter 250 mm Thickness 22.7 mm Black | Saudi Pipes Systems (SPS)
