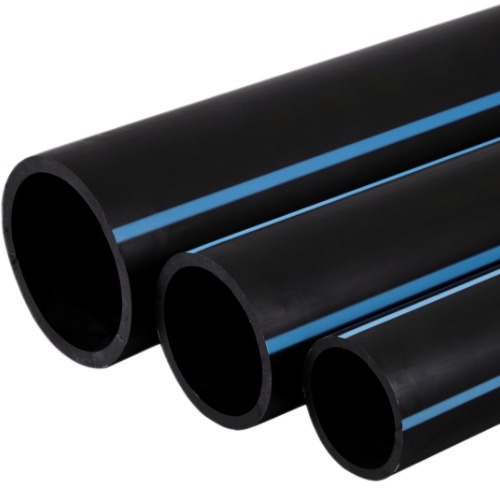

HDPE Plastic Coil Pipe Nominal Pressure 8 Bar PE 80 OD 125 mm SDR 17 Black | Al mona for innovative pipe solutions

HDPE Plastic Coil Pipe by Al mona for innovative pipe solutions is manufactured from high-density polyethylene (PE 80), providing excellent strength, corrosion resistance, and durability. Designed for construction materials and building supplies in Saudi Arabia, this pipe supports nominal pressure up to 8 bar and is perfect for water transportation networks and underground installations.

• Outside diameter (OD): 125 mm
• Standard dimension ratio (SDR): 17
• Material grade: PE 80
• Nominal pressure: 8 bar
• Wall thickness: 7.4 mm
• Minimum Required Strength (MRS): 8 MPa
• Design stress (σs): 6.4 MPa
• Design safety factor: C=1.25
• Color: Black
• Length: Coils available in 100 m and 200 m
